StrataRap_WORKSHOP PHOTOGRAPHS

OCTOBER 2026

Covers off.

From the outer shell to the insulated chamber and exposed gantry.

Select a photograph to open the full-resolution copy in a new tab.

The outer shell

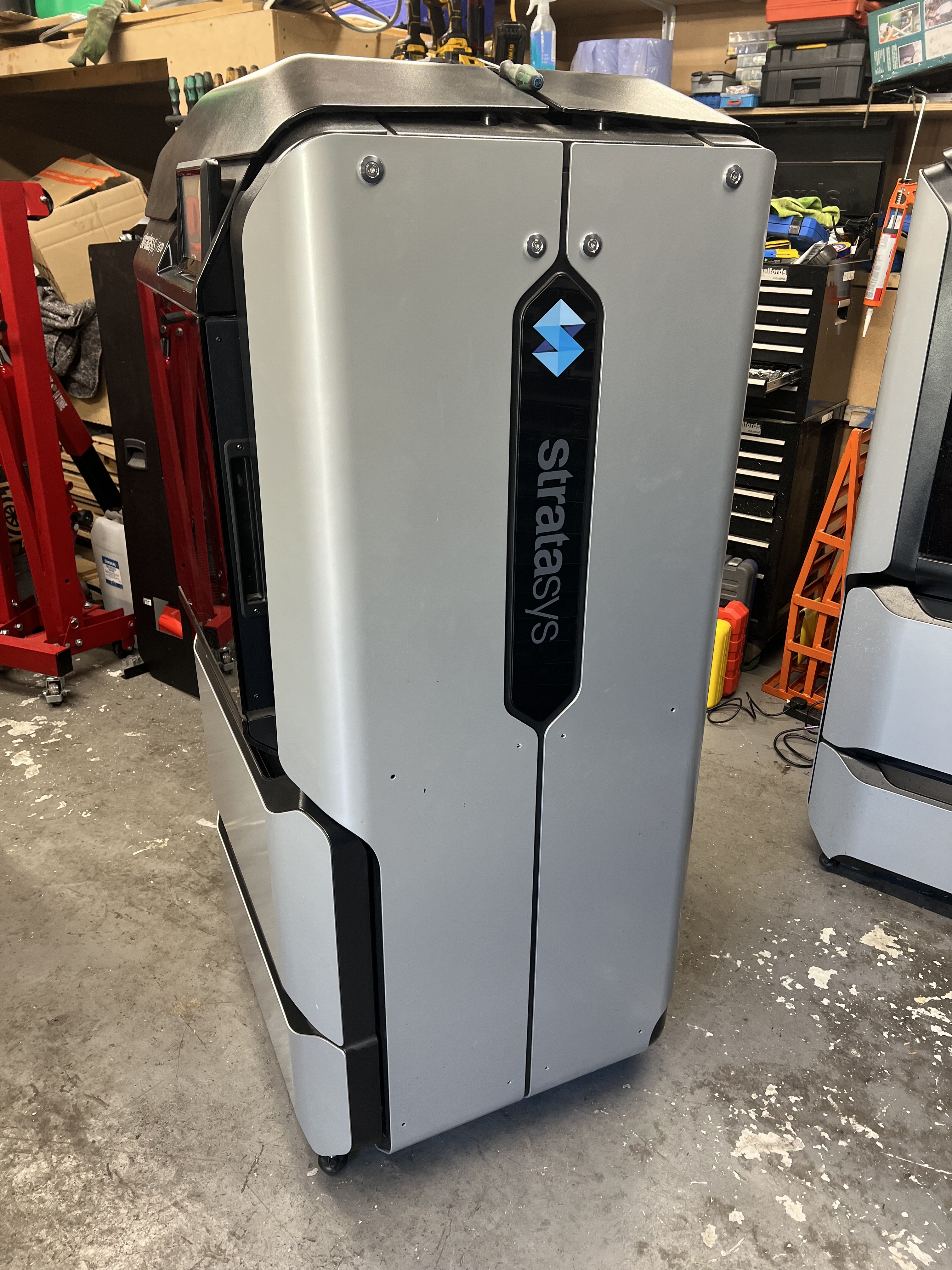

The F170 with its outer covers fitted.
The F170 with its outer covers fitted.

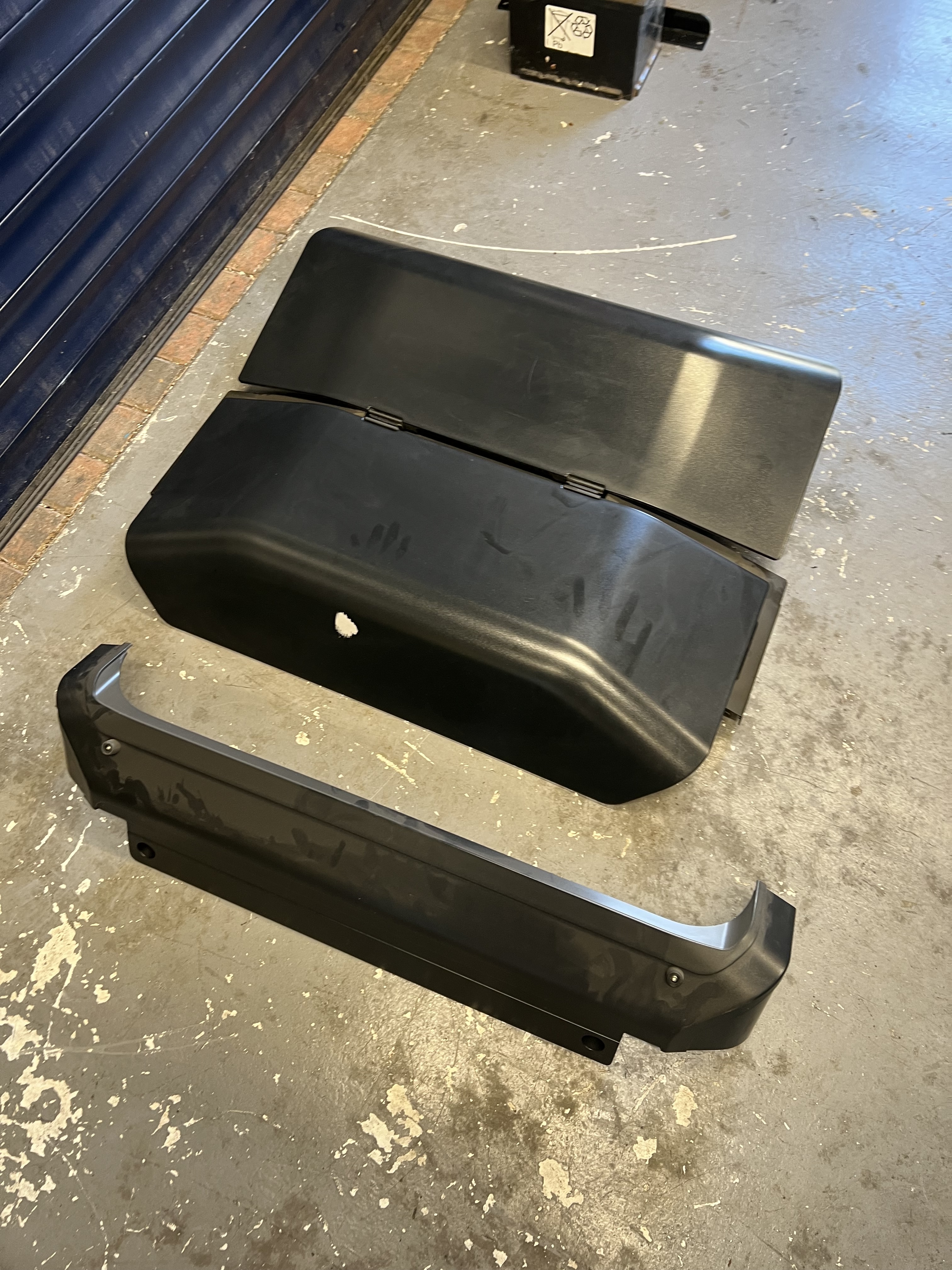

Removed cover panels laid out on the workshop floor.
Removed cover panels laid out on the workshop floor.

Underneath the panels

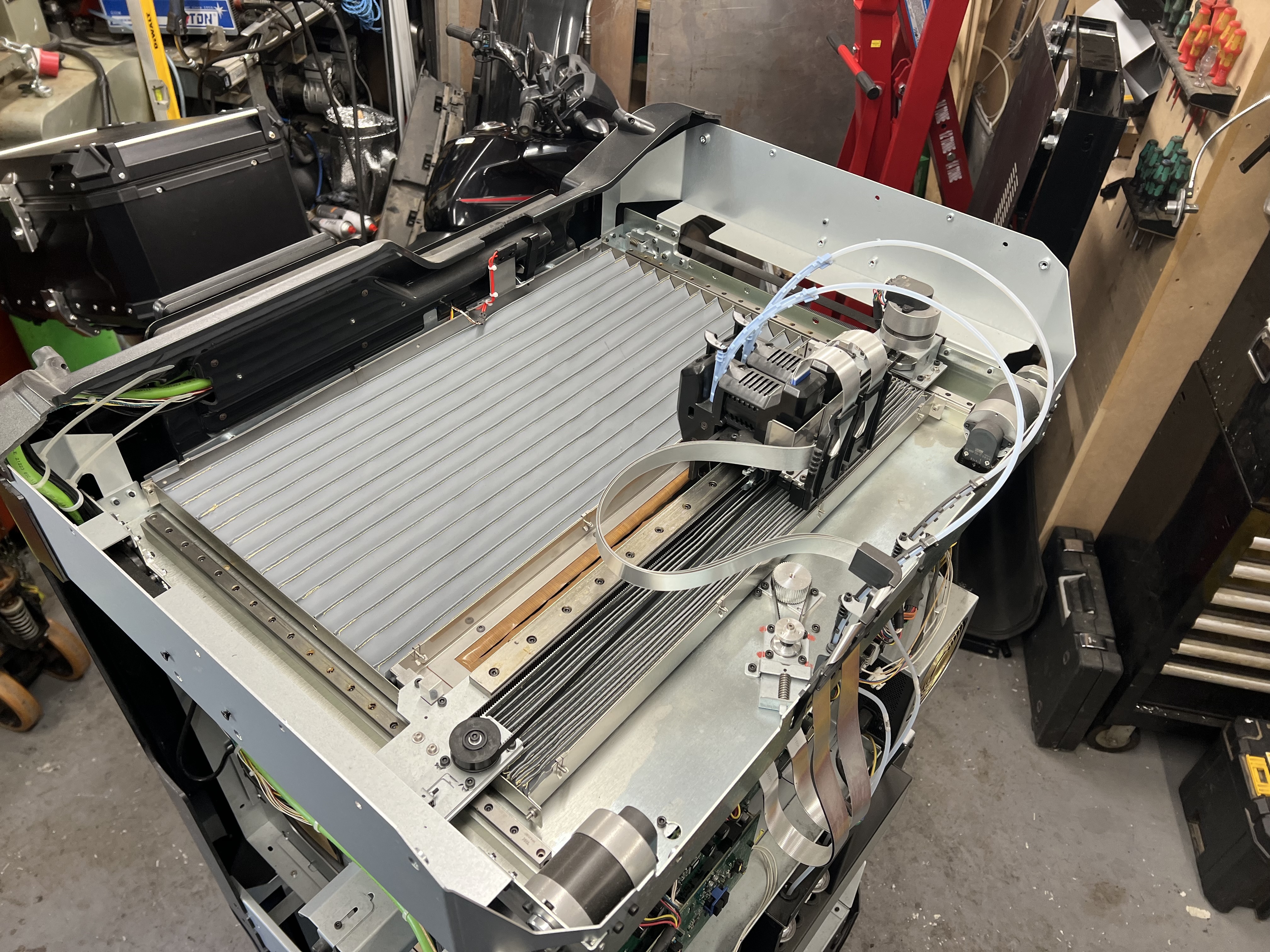

Top covers removed, exposing the gantry and steel heat shield.
Top covers removed, exposing the gantry and steel heat shield.

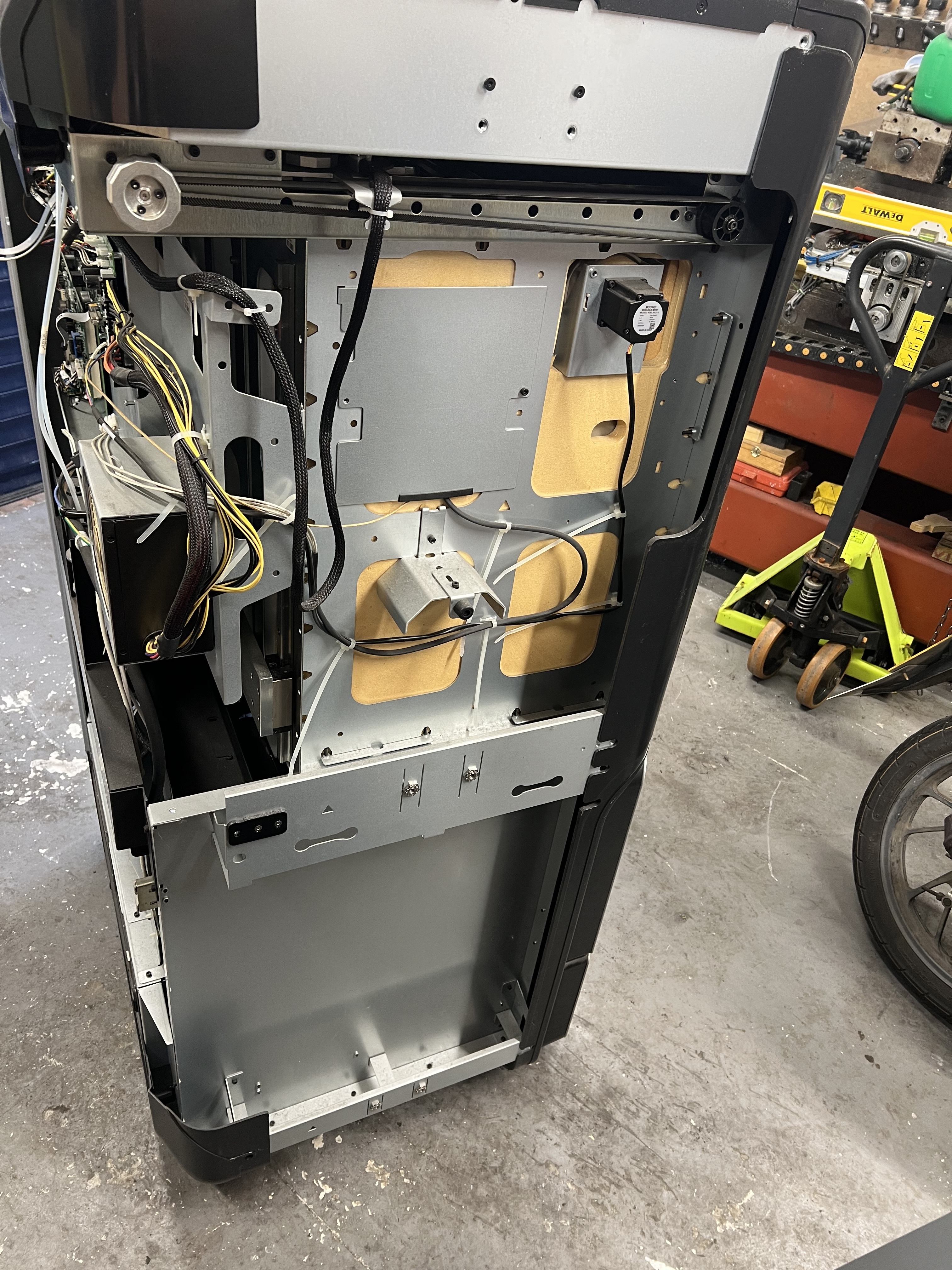

Side cover off: the insulation and heater blower mounts.
Side cover off: the insulation and heater blower mounts.

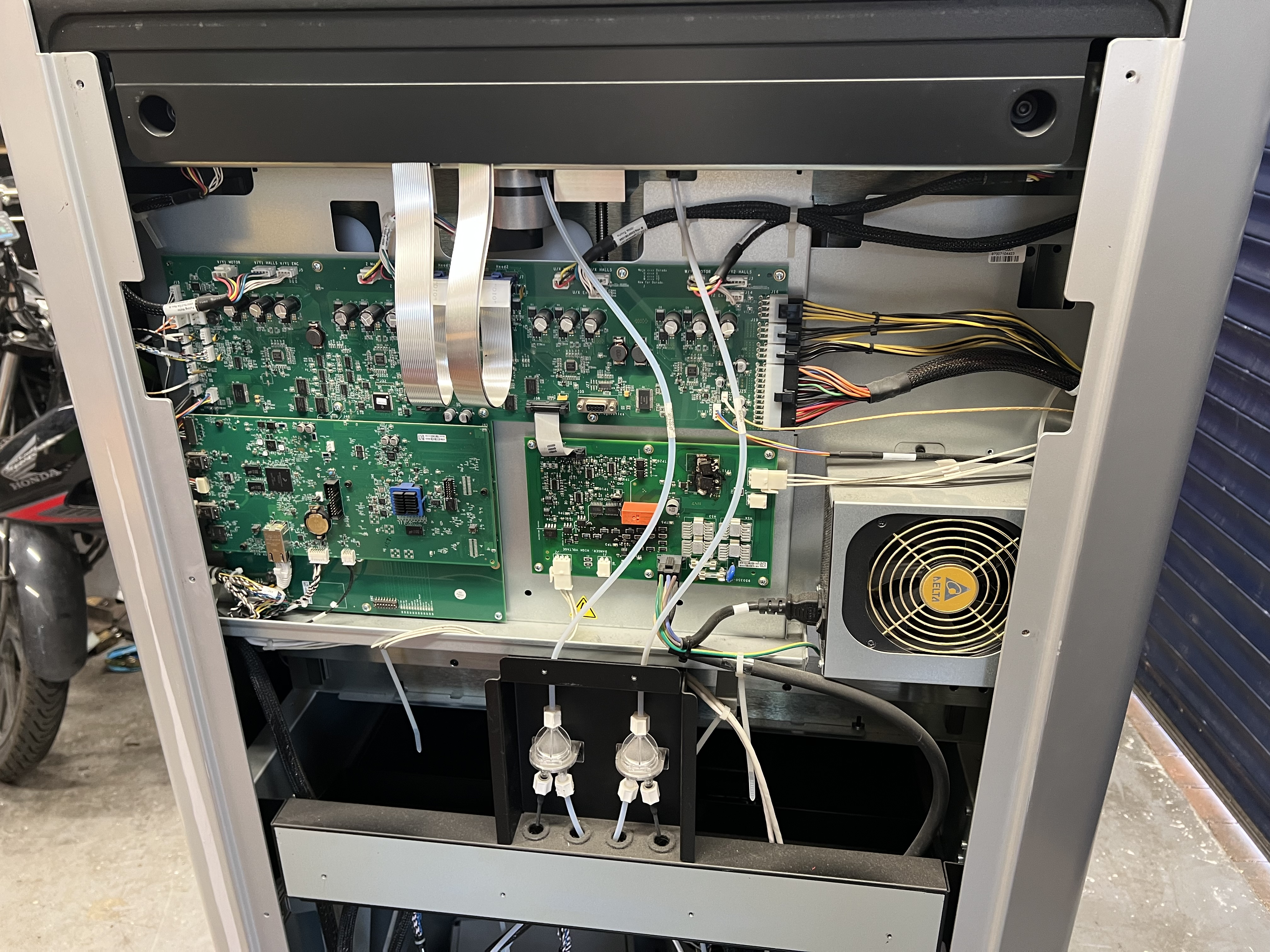

P1 with the rear cover off: motion electronics above, heater controls below.
P1 with the rear cover off: motion electronics above, heater controls below.
